Overview：

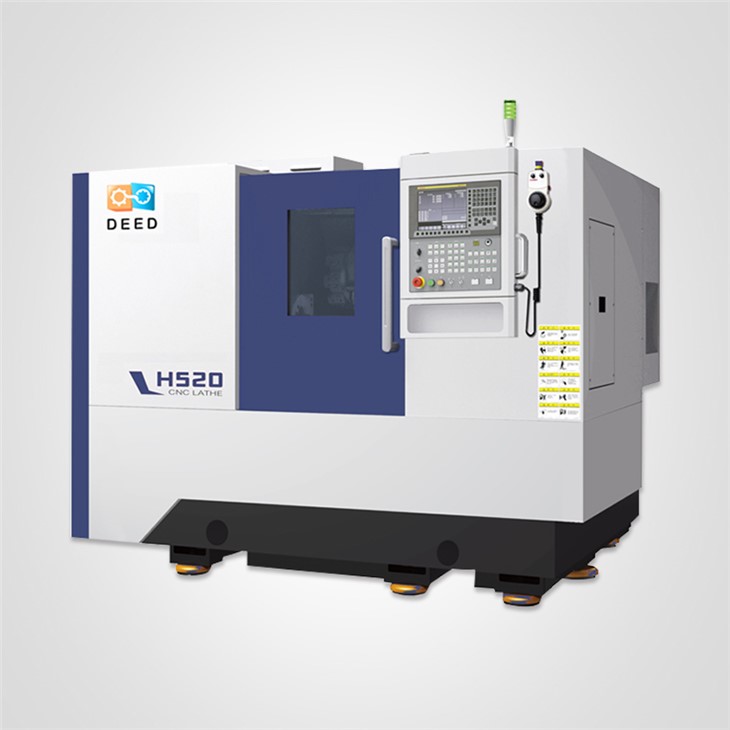

CNC Turning Lathe H520 is suitable for machining workpieces such as small and medium-sized discs, covers, high-strength cast iron bases, and columns. Because of the vertical structure, it has good stability, good shock resistance, a small footprint, and is convenient for clamping workpieces, so it is very popular. It adopts an oil-water separation structure, the cooling water is clean and environmentally friendly, it can be cooled independently for a long time, and the water tank is also easy to clean.
CNC Turning Lathe H520 has high processing precision and stable processing quality. Because it can perform multi-coordinate linkage, it is very suitable for machining parts with complex shapes. When the processing parts change, generally only need to change the CNC program, which can save production preparation time. The bed itself has high precision, good rigidity, high productivity (generally 3 to 5 times that of ordinary machine tools), a high degree of automation, and can reduce labor intensity.
Main specifications
Processing material: aluminum, copper, other metal, etc.
Maximum rotary dia: 800/900mm
Maximum cutting dia: 620'22''/730'26''
Max speed: 2500/(rpm)
Spindle nose type: A2-11
About us:
Our company staff warmly welcome your presence, to provide you with excellent CNC Turning Lathe H520 and perfect pre-sale and after-sale service. Get hold of us today for additional data! We have targeted technological innovation, equipment development and practical application, and accumulated rich management experience.
| Spindle | type | Belt/PM V-ribbed belt | |
| Max speed (rpm) | 2500 | ||
| Spindle nose type | A2-11 | ||
| spindle bearing dia | Φ160 | ||
| spindle taper | - | ||
| spindle bore dia | - | ||
| Controller | controller and motor | Fanuc 0i-TF Plus （double channel control） αiF22-3000(X1、X2) αiF30-4000 B(Z1、Z2) βisc12-2000*2（turret servo） αil40-6000(main motor） | |
| X1/X2 axis motor power（KW） | 4 | ||
| X1/X2 axis motor torque(N•M) | 22（rated） 64（max.） | ||
| X1/X2 axis motor power（KW） | 7 | ||
| Z1/Z2 axis motor torque(N•M) | 30（rated） 83（max.） | ||
| X-axis motor power（KW） | - | ||
| X-axis motor torque(N•M) | - | ||
| Z-axis motor power（KW） | - | ||
| Z-axis motor torque(N•M) | - | ||
| turret servo motor power（KW） | 1.4 | ||
| turret servo motor torque(N•M) | 10.5 | ||
| main motor（rated/maximum） power（KW） | 37/45 | ||
| spindle（rated/maximum） torque(N•M) | 350/540 | ||
| WORK RANGE | max. rotary dia（mm） | ∅800 | |
| max. cutting dia（mm） | ∅620 22¹¹ | ||
| max. cutting length（mm） | 360 12¹¹ | ||
| max. working height（mm） | |||
| max. tool length（mm） | 370 | ||
| saddle rotary dia（mm） | |||
| TRAVEL AND RAPID MOVING | X1/LEFT（mm） | 0～430 | |
| X2/RIGHT（mm） | -40～390 | ||
| Z1/Z2（mm） | 0～540（minimum distance from turret base to chuck face195，maximum 195+540） | ||
| rapid moving（m/min） | 20 | ||
| X/Z-axis travel（mm） | - | ||
| Z-axis travel（mm） | - | ||
| X/Z-axis rapid moving（m/min） | - | ||
| ATC | Center height(mm) | - | |
| The edge width(mm) | - | ||
| tool number | servo-hydraulic 6, workstation*2（two side） | ||
| Inside tool dia | - | ||
| Max. tool size(mm) | - | ||
| tool interface type | BMT65 | ||
| The edge distance（mm） | 360 | ||
| adjacent exchange tool and lock time（sec) | 0.76 | ||
| farthest exchange tool and lock time（sec) | 1.32 | ||
| ACCURACY | X1/X2/Z1/Z2 Positioning（mm） | 0.01 | |
| X1/X2/Z1/Z2 Repeatabiliting（mm） | 0.005 | ||
| X/Z Positioning（mm） | - | ||
| X/Z Repeatabiliting（mm） | - | ||
| OTHER | Power（KW) | 90 | |
| Coolant capacity（L) | 500/850（High flow of coolant optional） | ||
| Air pressure required（MPa） | 0.65 | ||
| size（L×W×H） | 3352×2791×3384 | ||
| net weight (kg) | 17000 | ||
| Standard function configuration and suppliers | |||
| Spindle unit | KASWIN(SOUTH KOREA) | ||
| Servo hydraulic turret | ATRUMP/LIO SHING/TAIWAN MANUFACTURE | ||
| Ball screw | PMI/HIWIN/NSK/THK | ||
| Screw bearing | NSK/FAG/NTN/TPI/NAHI | ||
| Pneumatic actuator | AirTAC(TAIWAN) | ||
| Chip conveyor and water tank | Yufeng/HAIANG MAO | ||
| Cooling chip flushing pump | STARIS | ||
| Hydraulic system | SEVEN OCEAN/HAGEELUND | ||
| Auto lubrication system | Yuxiang | ||
| Coupler | NBK/MIKI | ||
| Angling cylinder | AUTO GRIP/AUTO STRONG | ||
| Machine cover | DEED/homemade | ||
| Work lamp | YES | ||
| Electric cabinet heat exchanger | YES | ||
| Options | |||
| larger powerspindlemotor37/45KW | |||
| collect travel detection | |||
| Airtightness test | |||
| sector chuck（OP2) | |||
| Stright jaw chuck（OP2) | |||
| VDI50 turret | |||
| Chuck blow system | |||
| Oil mist collector | |||
| tool system | |||
| filter system | |||
| I/O Manipulator interface | |||
| CTS（20kgf/30kgf/40kgf） | |||
| heavy chip washing and cooling system | |||
| foot pedal | |||
| Z-axis Nitrogen balancing cylinder system | |||
| AUTO DOOR | |||
| Electric cabinet AC | |||
